Experiment with Shi, Xie, Xuan & Nocedal general method

Find a step which is near to optimal for a general finite difference formula.

References

  • Shi, H. J. M., Xie, Y., Xuan, M. Q., & Nocedal, J. (2022). Adaptive finite-difference interval estimation for noisy derivative-free optimization. SIAM Journal on Scientific Computing, 44 (4), A2302-A2321.

import numpy as np
import pylab as pl
import numericalderivative as nd
from matplotlib.ticker import MaxNLocator

Use the method on a simple problem

In the next example, we use the algorithm on the exponential function. We create the ShiXieXuanNocedalGeneral algorithm using the function and the point x. Then we use the find_step() method to compute the step, using an upper bound of the step as an initial point of the algorithm. Finally, use the compute_first_derivative() method to compute an approximate value of the first derivative using finite differences. The get_number_of_function_evaluations() method can be used to get the number of function evaluations.

x = 1.0
differentiation_order = 1  # First derivative
formula_accuracy = 2  # Order 2
formula = nd.GeneralFiniteDifference(
    np.exp,
    x,
    differentiation_order,
    formula_accuracy,
    direction="central",  # Central formula
)
algorithm = nd.ShiXieXuanNocedalGeneral(formula, verbose=True)
initial_step = 1.0
step, number_of_iterations = algorithm.find_step(initial_step)
f_prime_approx = algorithm.compute_derivative(step)
feval = algorithm.get_number_of_function_evaluations()
f_prime_exact = np.exp(x)  # Since the derivative of exp is exp.
print(f"Computed step = {step:.3e}")
print(f"Number of iterations = {number_of_iterations}")
print(f"f_prime_approx = {f_prime_approx}")
print(f"f_prime_exact = {f_prime_exact}")
absolute_error = abs(f_prime_approx - f_prime_exact)

x = 1.0
absolute_precision = 1.000e-15
estim_step=1.000e+00
+ Iter.=0, lower_bound=0.000e+00, upper_bound=inf, estim_step=1.000e+00, r = 1.735e+15
    - test_ratio > self.minimum_test_ratio. Set upper bound to h.
    - lower_bound == 0: decrease h.
+ Iter.=1, lower_bound=0.000e+00, upper_bound=1.000e+00, estim_step=2.500e-01, r = 2.157e+13
    - test_ratio > self.minimum_test_ratio. Set upper bound to h.
    - lower_bound == 0: decrease h.
+ Iter.=2, lower_bound=0.000e+00, upper_bound=2.500e-01, estim_step=6.250e-02, r = 3.321e+11
    - test_ratio > self.minimum_test_ratio. Set upper bound to h.
    - lower_bound == 0: decrease h.
+ Iter.=3, lower_bound=0.000e+00, upper_bound=6.250e-02, estim_step=1.562e-02, r = 5.185e+09
    - test_ratio > self.minimum_test_ratio. Set upper bound to h.
    - lower_bound == 0: decrease h.
+ Iter.=4, lower_bound=0.000e+00, upper_bound=1.562e-02, estim_step=3.906e-03, r = 8.101e+07
    - test_ratio > self.minimum_test_ratio. Set upper bound to h.
    - lower_bound == 0: decrease h.
+ Iter.=5, lower_bound=0.000e+00, upper_bound=3.906e-03, estim_step=9.766e-04, r = 1.266e+06
    - test_ratio > self.minimum_test_ratio. Set upper bound to h.
    - lower_bound == 0: decrease h.
+ Iter.=6, lower_bound=0.000e+00, upper_bound=9.766e-04, estim_step=2.441e-04, r = 1.978e+04
    - test_ratio > self.minimum_test_ratio. Set upper bound to h.
    - lower_bound == 0: decrease h.
+ Iter.=7, lower_bound=0.000e+00, upper_bound=2.441e-04, estim_step=6.104e-05, r = 3.090e+02
    - test_ratio > self.minimum_test_ratio. Set upper bound to h.
    - lower_bound == 0: decrease h.
+ Iter.=8, lower_bound=0.000e+00, upper_bound=6.104e-05, estim_step=1.526e-05, r = 4.774e+00
    - Step = 1.52587890625e-05 is OK: stop.
Computed step = 1.526e-05
Number of iterations = 8
f_prime_approx = 2.718281828565523
f_prime_exact = 2.718281828459045

Use the method on the ScaledExponentialProblem

Consider this problem.

problem = nd.ScaledExponentialProblem()
print(problem)
name = problem.get_name()
x = problem.get_x()
third_derivative = problem.get_third_derivative()
third_derivative_value = third_derivative(x)
optimum_step, absolute_error = nd.FirstDerivativeCentral.compute_step(
    third_derivative_value
)
print(f"Name = {name}, x = {x}")
print(f"Optimal step for central finite difference formula = {optimum_step}")
print(f"Minimum absolute error= {absolute_error}")

DerivativeBenchmarkProblem
name = scaled exp
x = 1.0
f(x) = 0.9999990000005
f'(x) = -9.999990000004999e-07
f''(x) = 9.999990000005e-13
f^(3)(x) = -9.999990000005e-19
f^(4)(x) = 9.999990000004998e-25
f^(5)(x) = -9.999990000004998e-31

Name = scaled exp, x = 1.0
Optimal step for central finite difference formula = 6.694331732265233
Minimum absolute error= 2.2407016263779204e-17

Plot the error vs h

function = problem.get_function()
first_derivative = problem.get_first_derivative()
finite_difference = nd.FirstDerivativeCentral(function, x)
number_of_points = 1000
step_array = np.logspace(-8.0, 4.0, number_of_points)
error_array = np.zeros((number_of_points))
for i in range(number_of_points):
    h = step_array[i]
    f_prime_approx = finite_difference.compute(h)
    error_array[i] = abs(f_prime_approx - first_derivative(x))

pl.figure()
pl.plot(step_array, error_array)
pl.plot([optimum_step] * 2, [min(error_array), max(error_array)], label=r"$h^*$")
pl.title("Central finite difference")
pl.xlabel("h")
pl.ylabel("Error")
pl.xscale("log")
pl.yscale("log")
pl.legend(bbox_to_anchor=(1, 1))
pl.tight_layout()

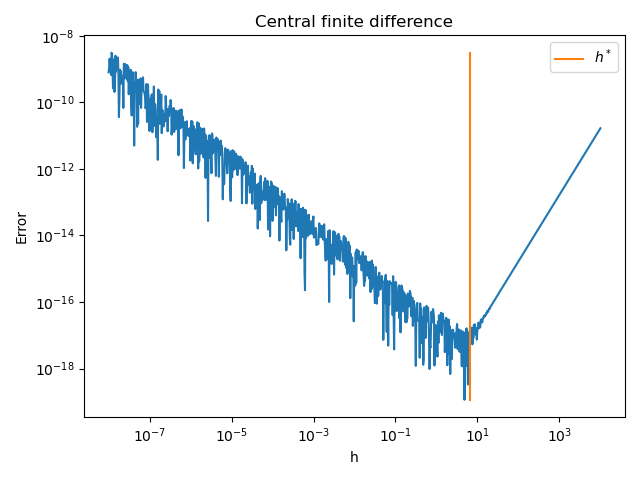

Central finite difference

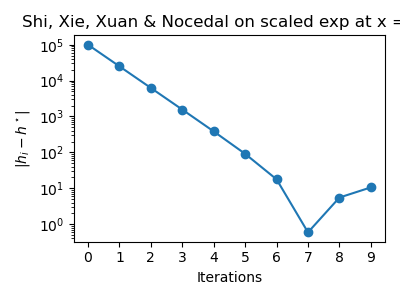

Use the algorithm to detect h*

differentiation_order = 1
formula_accuracy = 2
formula = nd.GeneralFiniteDifference(
    function,
    x,
    differentiation_order,
    formula_accuracy,
    direction="central",  # Central formula
)
algorithm = nd.ShiXieXuanNocedalGeneral(formula, verbose=True)
x = 1.0e0
initial_step = 1.0
h_optimal, iterations = algorithm.find_step(initial_step)
number_of_function_evaluations = algorithm.get_number_of_function_evaluations()
print("Optimum h =", h_optimal)
print("iterations =", iterations)
print("Function evaluations =", number_of_function_evaluations)
f_prime_approx = algorithm.compute_derivative(h_optimal)
absolute_error = abs(f_prime_approx - problem.first_derivative(x))
print("Error = ", absolute_error)

x = 1.0
absolute_precision = 1.000e-15
estim_step=1.000e+00
+ Iter.=0, lower_bound=0.000e+00, upper_bound=inf, estim_step=1.000e+00, r = 0.000e+00
    - test_ratio < self.minimum_test_ratio. Set lower bound to h.
    - upper_bound == np.inf: increase h.
+ Iter.=1, lower_bound=1.000e+00, upper_bound=inf, estim_step=4.000e+00, r = 5.551e-02
    - test_ratio < self.minimum_test_ratio. Set lower bound to h.
    - upper_bound == np.inf: increase h.
+ Iter.=2, lower_bound=4.000e+00, upper_bound=inf, estim_step=1.600e+01, r = 1.998e+00
    - Step = 16.0 is OK: stop.
Optimum h = 16.0
iterations = 2
Function evaluations = 18
Error =  4.34386023922791e-17

Plot the criterion depending on the step

Plot the test ratio depending on h

problem = nd.ScaledExponentialProblem()
function = problem.get_function()
name = problem.get_name()
x = problem.get_x()
differentiation_order = 1
formula_accuracy = 2
formula = nd.GeneralFiniteDifference(
    function,
    x,
    differentiation_order,
    formula_accuracy,
    direction="central",  # Central formula
)
algorithm = nd.ShiXieXuanNocedalGeneral(formula, verbose=True)
minimum_test_ratio, maximum_test_ratio = algorithm.get_ratio_min_max()
absolute_precision = 1.0e-15
number_of_points = 500
step_array = np.logspace(-10.0, 3.0, number_of_points)
test_ratio_array = np.zeros((number_of_points))
for i in range(number_of_points):
    test_ratio_array[i] = algorithm.compute_test_ratio(
        step_array[i],
    )

pl.figure()
pl.plot(step_array, test_ratio_array, "-", label="Test ratio")
pl.plot(step_array, [minimum_test_ratio] * number_of_points, "--", label="Min")
pl.plot(step_array, [maximum_test_ratio] * number_of_points, ":", label="Max")
pl.title(f"{name} at x = {x}. Test ratio.")
pl.xlabel("h")
pl.ylabel(r"$r$")
pl.xscale("log")
pl.yscale("log")
pl.legend()
pl.tight_layout()
scaled exp at x = 1.0. Test ratio.
